Products

Painting Hose

FA Tube

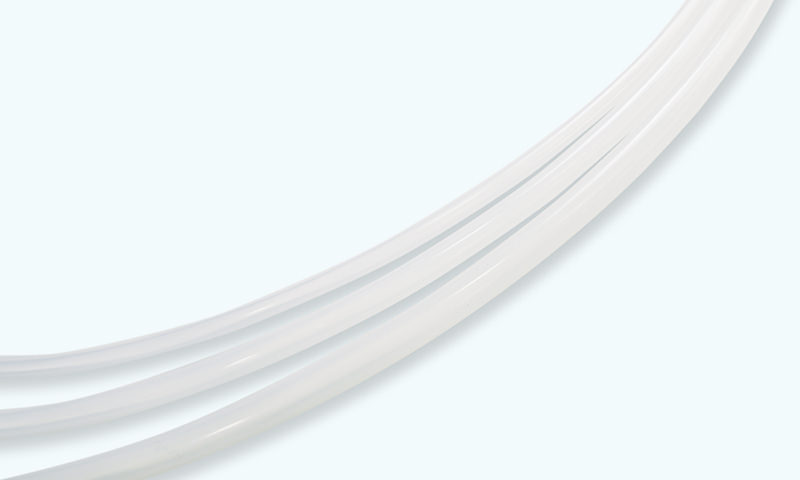

FA Tube

Compared to conventional fluorine tube, the softness and smoothness of inner tube have been improved, attaining superior workability.

Material

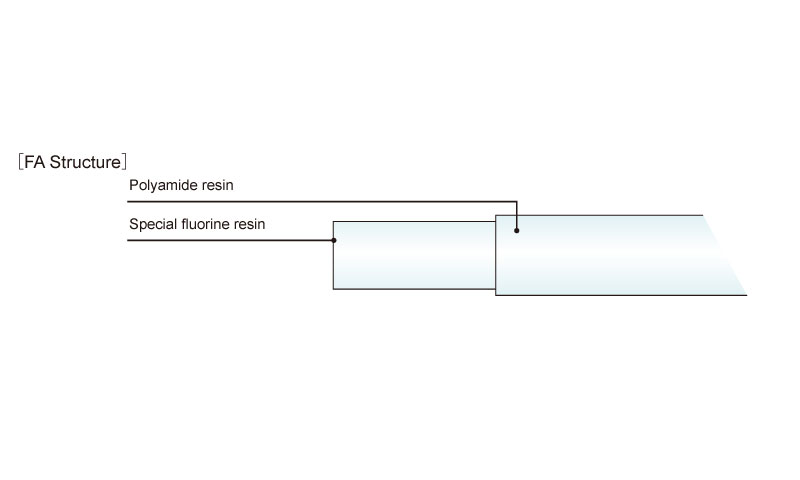

Inner fluorine resin product
Usage
For piping of paints, solvents, and paint robots, and conveyance of foods and beverages.
Features
Compared to conventional fluorine tubes, the retention power against burst pressure after bending the tube has been greatly upgraded.
Fluids

Paints

Solvents

Various foods

List of painting hoses

Specifications:Working temperature limit: Between -20℃ and + 60℃

Nominal designation Inner diameter(mm) Outer diameter(mm) Regular size(m) Maximum working pressure MPa at 20℃ Minimum bending radius(mm) Regular size weight(kg)
FA-6 4.0 6.0 100 1.2 18 2.0
FA-8 6.0 8.0 100 1.2 30 2.8
FA-10 8.0 10.0 100 1.2 50 3.5
