Air tool Hose

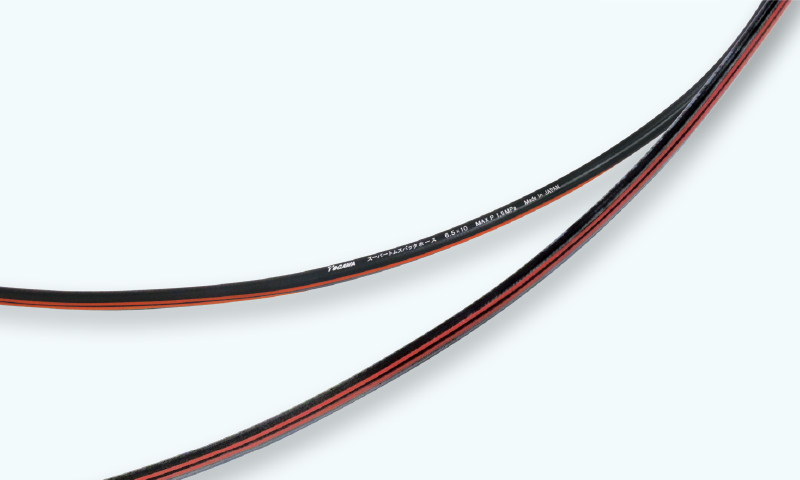

Super Tom Spatter Hose
Compared to conventional air hoses, this hose has greater resistance against sparks due to the inclusion of spark resistance substances, which is appropriate for using at welding sites and automobile service garages, etc.
- Material
- Specialized elastomer product
- Usage
- For air-paint, air-spray, and in-factory air tools
- Features
- Compared to conventional urethane hoses, this hose has greater resistance against sparks due to the inclusion of spark resistance substances, which is appropriate for using at welding sites and automobile service garages, etc.
- Fluids
-
Air
Specifications:Working temperature limit: Between -40℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| STH-6510 | 6.5 | 10.0 | 100 | 1.5 | 30 | 5.7 |
| STH-8512 | 8.5 | 12.5 | 100 | 1.5 | 40 | 8.3 |
* All the evaluations were made in-house * Use our specified brackets
Performance evaluation
| Descriptions | Evaluation | Descriptions | Evaluation |
| Lightness | Smoothness | ||
| Softness | Spattering resistance |
* All the evaluations were made in-house * Use our specified brackets
